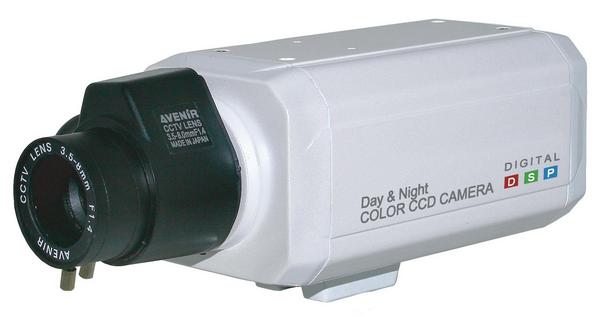

Camera color KM-55H

Camera fara lentila,
1/3\" SONY Super HAD II CCD,
High Sensitivity, 520 TVL,
0.01 Lux/F 1.2




Caracteristici
Senzor CCD SONY 1/3″ Super HAD II CCD
Pixeli efectivi ( H*V ) PAL:795×596
Rezolutie camera 520 Linii TV
Raport Semnal/Zgomot > 48dB
Tip scanare 2:1 interlace
Sensibilitate 0.01 Lux
AES PAL:1/50s~1/100,000s
Gamma 0.05-1
Control Iris Video/DC iris
White Balance Auto
Back Light Compensation ON/OFF (optional)
Iesire video 1Vpp,75 Ω
Controlul castigului Auto
Tensiune/Curent 12VDC(+/-10%)/ 200mA
Lentile C / CS
Dimensiuni (mm) 101×50×57.5
Greutate (g) 350
Temperatura Stocare -30°C~ +60°C
Temperatura functionare -10°C~ +45°C
